New Tensioner Spring for the Filament Maker TWO

What it is ?

The spring in the tensioner wheel holds the filament tightly, controlling how firmly it is pressed against the spool wheel.
This ensures proper tension, preventing slipping and promoting even winding for smooth and consistent filament feeding.

When to use / Benefits

This Spring is used when the filament slips or spools unevenly. It provides better grip on the filament, reducing slippage and ensuring the spools wind evenly and smoothly By maintaining proper tension it helps prevent tangles, jams, and wasted filament

Installation guide

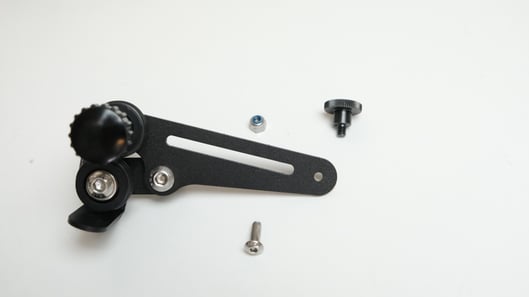

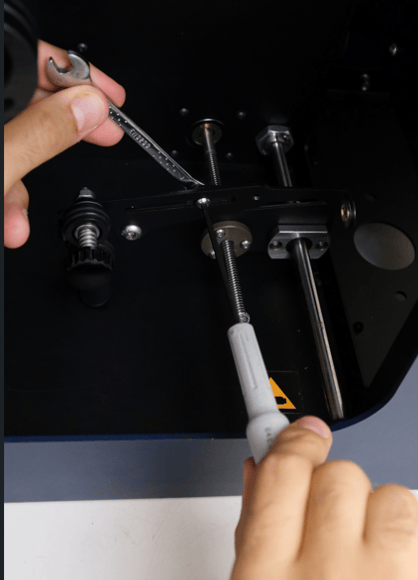

1. Remove guiding arm for an easier access to the spring. Unscrew the right-most screw as shown in the image. Use an M4 hex key and hold the nut at the back with the size 7 wrench, or pliers.
2. The sub assembly can now be safely removed from the machine, for easier access.

3. Remove the screw and nut, and unscrew the adjustment wheel.

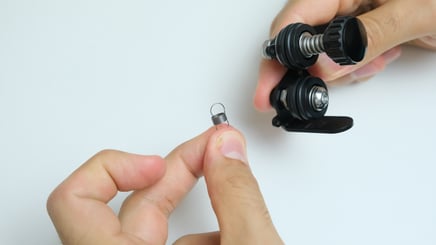

4.  Remove the longer spring by unhooking both ends from the metal loops. Careful not to bend the spring during installation.

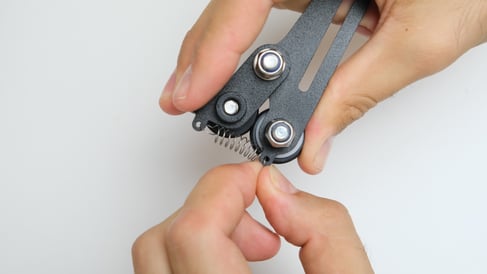

5. Re-attach shorter spring in a similar fashion, see step 3.

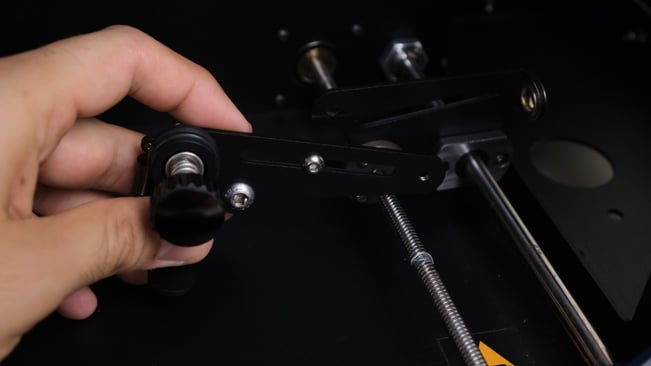

6. Re attach guiding arm, following the procedure in step 1 in reverse order.
