Detailed procedures to follow, in order to safely clean the GP20 Shredder Hybrid.
Table of contents
Warning
Make sure the machine is turned off and the power plug is removed before proceeding with the next steps!
Warning
Always wear cut resistant gloves when working around and inside the cutting chamber.
Clean the Hopper
Clean the Container

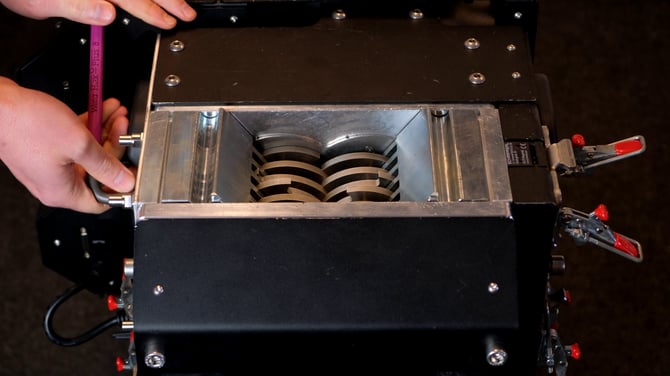

Clean the Scraper combs
Clean the scraper combs and the cutting chamber using the following tools:
- Vacuum cleaner
- Pressurized air
- Brush
- Screwdriver
- Tweezer (or similar object)

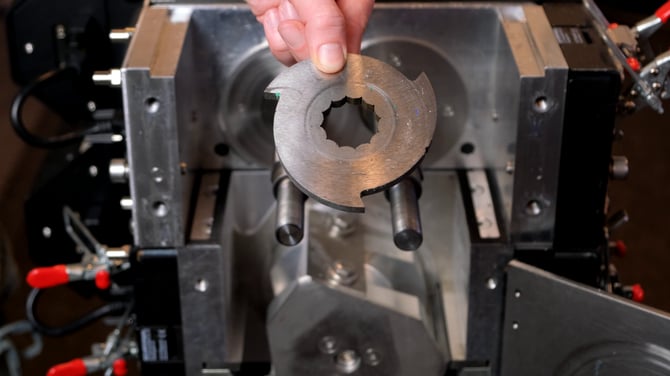

Optional: Clean the shredder blades
- To thoroughly clean cutting chamber of the shredder, you can take the shredder blades out as shown in here.
- Clean the shredder blades, shredder spacers.
- Carefully reinstall the shredder blades and shredder spacers and reinstall the front plate.
Clean the GP20 Granulator
- If applicable, let the machine run until all the remaining material inside the GP20 Granulator is processed. This can be heard by the decreasing noise or checked by regularly turning off the machine and checking the Container.
Warning
Make sure the machine is turned off and the power plug is removed before proceeding with the next steps!
- Remove the Hopper from the machine.
- Remove the Container from the machine.
Warning
Always wear cut resistant gloves when working around and inside the cutting chamber.
- Open the granulator door to gain access to the cutting chamber
- Remove the filter screen, as shown in this article.
- Optional: for thorough cleaning, also remove the Rotor of the Granulator.
Clean the cutting chamber using the following tools:
- Vacuum cleaner
- Pressurized air
- Brush
- Screwdriver
- Tweezer (or similar object)
- Finally clean the granulator compartment and reinstall the filter
